VELUX GGU 0066 INTEGRA | everfinish, electric window with anti burglary 3-glazing

VELUX GGU is an electric, center pivot wooden roof window, covered with white polyurethane finish. With tripple, safe and easy to clean glazing.

The electric powered VELUX INTEGRA® windows are ideal for out-of-reach situations and for adding that extra level of comfort. The GGU Integra centre-pivot window is easy to install and comes with pre-installed hidden motor that opens and closes the window at the push of a button. All you need to do is plug it into a power supply.  The smartphone-esque, intuitive control pad can be used anywhere in the home. Fully programmable control pad can operate Roof Windows, Blinds, Awnings and Roller Shutters individually or in groups.

Centre-pivot GGU white finish roof windows which feature a seamless, waterproof polyurethane coating are recommended for bathrooms, kitchens or other high-humidity rooms. VELUX white windows are also ideal for creating clean, stylish looks. With a clean, white design, it’s also a great choice for any room where you want a maintenance-free window that looks great.

This window combines all the features of basic centre-pivot window, with a premium white polyurethane coating to protect the strong wooden core from moisture.

GGU window is equipped with electrically controlled ventilation. The unique, integrated VELUX ventilation flap lets in fresh air through a dust and insect filter even when the window is closed. Good for rainy days, and ensure a healthy indoor environment.

The New Generation GGU roof window incorporates new, innovative insulation system ThermoTechnology™ and additional seal to offer superior energy efficiency through improved insulating values. Additional seal provides the highest 4 class integrity of the window.

Features

• Pine core covered with waterproof polyurethane coating. Matches perfectly to modern interiors;
• The new VELUX INTEGRA® control pad with touch screen and swipe function;
• Fully integrated motor;
• Rain sensor;
• Double chamber glazing with a toughened outer pane for strength | P2A safety class, easy to clean, anti dew;

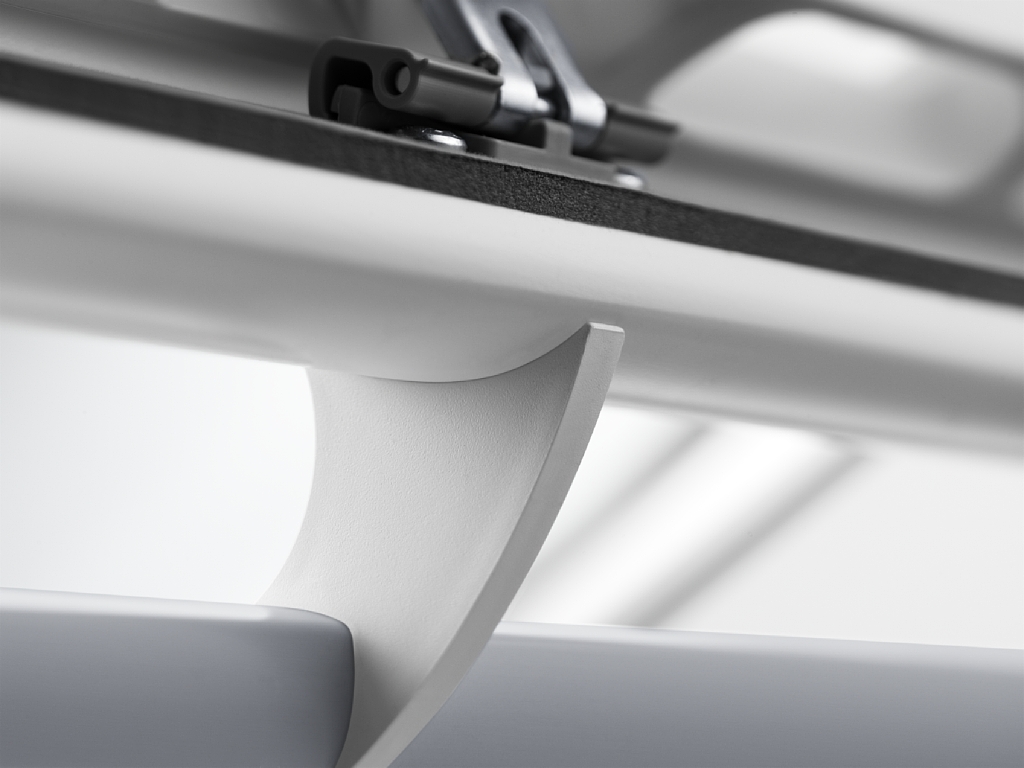

• Comfortable top control bar;
• Sash rotation by 180° | easy to rotate and clean the outer glass;
• The unique, integrated ventilation | air flow even when window is closed;
• Dust and insect filter;

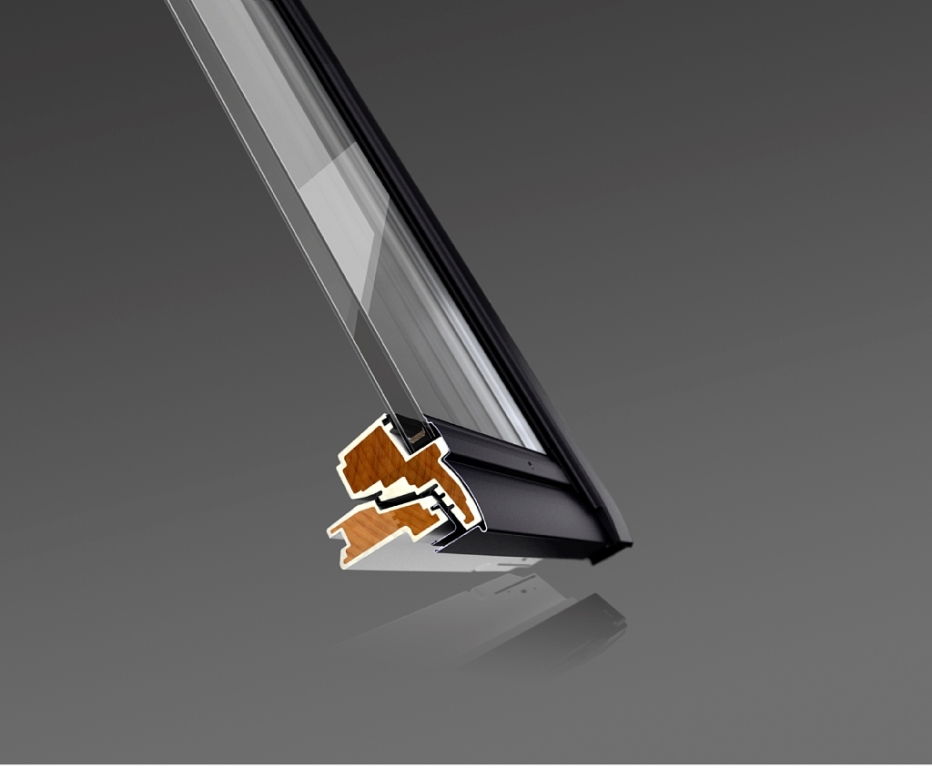

• Thermo Technology | transfers less energy and keeps your home warm;
• Additional seal;
• High quality pivot hinges for smooth operation
• Suitable for roofs with pitches between 15 and 90 degrees (when fitted with correct flashing);
• Wide range of accessories;
• Straightforward blind installation with patented mounting brackets
• 10 years warranty period.

Glazing unit (--66)

Double chamber glazing, laminated and anti-burglary class P2A. This 3-panes glazing comes with external pane toughened with Easy-to-clean & Anti-dew coating. The glazing cavity is filled with inert gas krypton. The laminated unit is positioned from the room side of the glazing and is coated with low emision layer. In case of laminated glass damage or shattering, pieces of glass will stick to the membrane. Laminated glass reduces penetration of UV rays by up to 95%.

Flashings

VELUX flashing: do I really need it?

Flashings are essential for the correct installation of roof windows. Precisely designed flashing details ensure a durable and neat fit with the roofing material used. The purpose of flashing is to ensure good drainage away from the window and to provide protection from the elements.
VELUX offers a range of flashings designed for different roofing materials and provide two options for installation height (standard and recessed).

VELUX flashing: standard or recessed installation?

Recessed installations offer a more sleek, streamlined appearance, sitting 40mm deeper in the roof structure. Recessed installations also offer greater energy efficiency, and when installed with the appropriate VELUX insulation collar actually offer a lower certified u-value, saving energy and providing architects with greater design flexibility.

EDZ 1000	EDW 0000	EDT 1000	EDJ 1000	EDN 1000	EDL 1000	EDS 1000	EDB 1000
Underfelt collar BBX
Included	-	Included	Included	Included	Included	Included	Included
Installation
Standard	Standard	Standard	Deeper	Deeper	Standard	Standard	Standard
Purpose (type of roofing material):
profiled from 1.5 to 4.5 cm height	profiled from 1.5 to 12 cm height	flat & thick tiles from 1.5 to 4 cm height	profiled from 1.5 to 9 cm height	slate, flat roofing materials up to 1.6 cm high (2 x 0.8 cm)	slate, flat roofing materials up to 1.6 cm high (2 x 0.8 cm) side parts as layered pieces without standing seams	bituminous shingles, flat roofing materials up to 1.6 cm high (2 x 0.8 cm) side parts continuous with standing seams	slate, flat roofing materials up to 3.8 cm high (2 x 1.9 cm)
Fitting for roofing material:
Interlocking panel, flat roof tile, flat cremone, reform panel, Frankfurt panel, Taunus panel, flat tile, Heidelberg panel, plain tile in crown covering	Monastery tile, monastery tile, monk and nun, Florento tile, Mistral tile, Toledo tile as well as thatch, straw, corrugated sheets 5-, 6-, 8-flute, Berlin wave	Koramic Wienerberger Orea 9, Monier Braas Turmalin, Braas Teviva, Braas Reviva, Creaton Domino, Nelskamp Nibra, Wienerberger Koramic Acuta, Erlus Linea and many others.	Interlocking tiles, flat roofing tiles, flat clay tiles, reform panels, Frankfurt panels, flat tiles, Heidelberg panels, corrugated sheets 5-, 6-, 8-wave, Berlin wave, plain tiles in crown and double roofing	Slate (e.g., rectangular double roofing template), wood shingles, roofing felt, roofing sheets, bituminous shingles, bituminous sheets		Slate (e.g. German and old German roofing), wooden shingles, roof panels	Double roofing plain tile
Installation type and installation range:
Standard, suitable for 20°-90° roof pitches	Standard, suitable for 15°-90° roof pitches	Standard, suitable for 20°-90° roof pitches	Recessed, suitable for 20°-90° roof pitches	Recessed, suitable for 20°-90° roof pitches	Standard, suitable for 15°-90° roof pitches	Standard, suitable for 15°-90° roof pitches	Standard, suitable for 25°-90° roof pitches
Additional insulation products (sold separately):
Insulation frame VELUX BDX 2000 for standard flashings, and vapour barrier collar VELUX BBX			Insulation frame VELUX BDX 2000F for recessed flashings, and vapour barrier collar VELUX BBX		Insulation frame VELUX BDX 2000 for standard flashings, and vapour barrier collar VELUX BBX

Technical specification:
