Roof window ROTO DESIGNO R49H ✓ wooden ✓ with WD thermo-block

Roof window DESIGNO R49H WD from ROTO

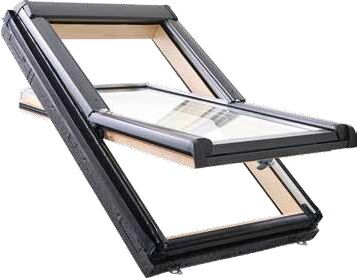

This is a roof window from the German manufacturer Roto - R49, wooden roof window is a pivot window. It stands out for its design and functionality, making it stand out from other manufacturers on the market. Like all Roto roof windows, it is made only from the best quality material. The window has a central pivot axis, which makes it easy to open and close. Equipped with triple insulating glazing, it reliably protects against noise and heat loss. This window is equipped with a three-point locking system, which provides security and tightness.

The R49 roof window is easy to operate due to the handle located at the bottom. The pivot point in the center of the window allows the sash to swivel almost 180° - in this position it can be locked, allowing easy cleaning of the outer pane. This window is designed specifically for price-conscious customers. Also, the roof window is not advertised directly, but can be purchased exclusively from online retailers, so there is no additional cost here. All this makes it possible that with the R49 a top-quality original Roto roof window can be purchased at an absolute top price roof window.

Advantages at a glance:

• Energy-saving 3-pane package
• Window with thermoblock WD for insulation of the window frame
• 15-year warranty and the highest quality of the product guarantee years of trouble-free use
• System of window regulation
• 3 locking points of the window - tightness and increased protection against burglary

ROTO PVC roof window with three elements of thermal insulation

1. triple glazing

2. thermal insulation block (WD) pre-installed

3. foil connection for ensuring air tightness pre-installed

ROTO roof windows with triple glazing

• Thermal transmittance Ug = 0.7 W/m2K
• Total energy transmittance (according to DIN EN410): 47%.
• Sound insulation: Class II
• Outer pane: 4mm ESG
• Middle pane: 3mm
• Inner pane: 4mm
• Space between panes: 2x 7 mm, inert gas filling (krypton)
• Total thickness of the pane: 25 mm

A comparison of Roto roof windows:

Features:	Roto Designo roof windows:
	R45:	R49:	R79:
Glazing:	2-panes	3-panes	3-panes
Window U-value:	1.3 W/m²K	1.1 W/m²K	1.1 W/m²K
Glazing U-value:	1.0 W/m²K	0.7 W/m²K	0.7 W/m²K
Opening:	centre-pivot	centre-pivot	high-pivot
Thermal insulation block (WD)	No	Yes	Yes

ROTO DESIGNO Flashing

The flashing is a clever plug-in system that doesn't require any external screw connections - and can therefore be installed just as quickly and safely by a Roto partner. Optimally adapted to the anthracite metallic paint of Roto Designo as standard.

• Tiles (EDZ): for profiled roofing up to 50 mm
• High tiles (EDH): for profiled roofing up to 90 mm
• Flat tiles (EDT): for flat roofing materials over 3 cm thick
• Tile with metal sheet (EDF): for roofing material: for sheet metal roofing, metal sheet, trapezoidal sheet
• Flat (EDS): for flat roofing materials up to 35 mm, for slate and slate-like roofing materials
• Slate and plain tile (EDL): for simple flashing materials up to 38 mm thick (2 x 19mm)
• Bitumen (EDG): for flat flashing materials up to 16 mm thick (2x8mm)
• Panels (EDQ): for sheet metal panels with standing seam
