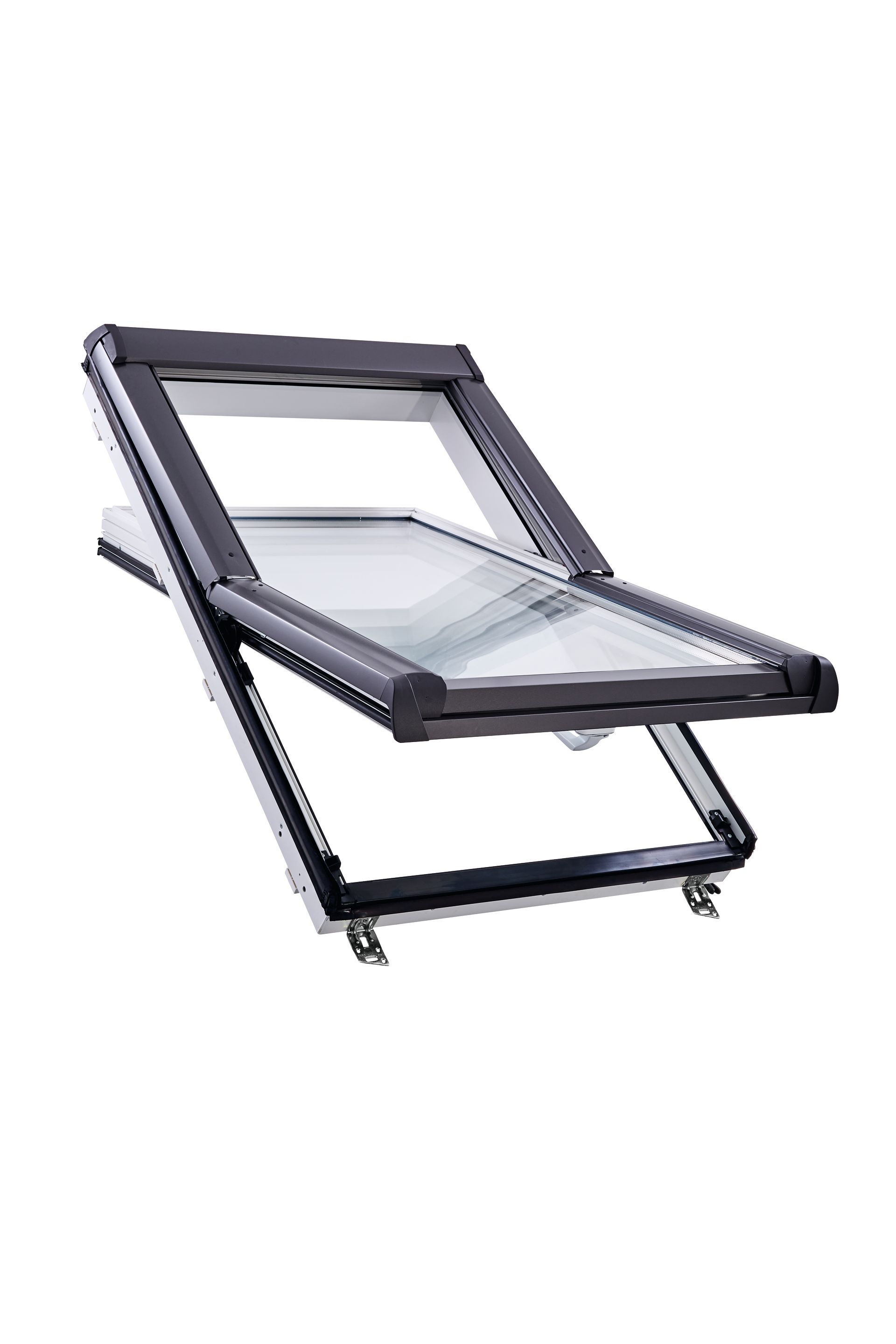

Roof window ROTO DESIGNO R45K ✓ central pivot ✓ PVC

This is a roof window from the German manufacturer Roto - R45 PVC roof window is a pivot window, it stands out for its design and functionality in comparison to other manufacturers on the market. The window rotates around an axis in the middle of the height, which makes it easy to open and close. It's equipped with double insulating glazing, reliably protecting against noise and heat loss. This window is equipped with a three-point locking system, which provides security and tightness.

The R45 roof window is not only easy to care for, but also very simple to operate. It can be opened from the bottom with a handle. The pivot point in the center of the window allows easy cleaning of the roof window. This window is specially designed for customers with an eye on price, who don't want to miss the quality of the Roto brand. This roof window can be compared in terms of insulation and noise protection with all similar products from even other producers. Roto decided not to offer different glazing units and there is no thermal insulation block pre-assembled. As well Roto didn't do an own advertisement to place the window on the market -it is only available via E-Commerce. All these reasons lead to the point, that we can offer a high-quality roof window at the absolute top end of the price range.

Features:

• Window model: Designo R4
• Central pivot window, made from PVC
• Handle: mounted at the bottom of the window wing
• Opening type: manual
• Energy-saving double glazing
• Easy installation: pre-installed brackets and flashing of the window
• Window adjustment system after installation
• 3 locking points of the window
• 15 years warranty
• No visible screws in the flashing
• Modern design of the cladding
• Attractive colour - metallic-anthracite

ROTO DESIGNO Flashing

The flashing is a clever plug-in system that doesn't require any external screw connections - and can therefore be installed just as quickly and safely by a Roto partner. Optimally adapted to the anthracite metallic paint of Roto Designo as standard.

• Tiles (EDZ): for profiled roofing up to 50 mm
• High tiles (EDH): for profiled roofing up to 90 mm
• Flat tiles (EDT): for flat roofing materials over 3 cm thick
• Tile with metal sheet (EDF): for roofing material: for sheet metal roofing, metal sheet, trapezoidal sheet
• Flat (EDS): for flat roofing materials up to 35 mm, for slate and slate-like roofing materials
• Slate and plain tile (EDL): for simple flashing materials up to 38 mm thick (2 x 19mm)
• Bitumen (EDG): for flat flashing materials up to 16 mm thick (2x8mm)
• Panels (EDQ): for sheet metal panels with standing seam
