Features:

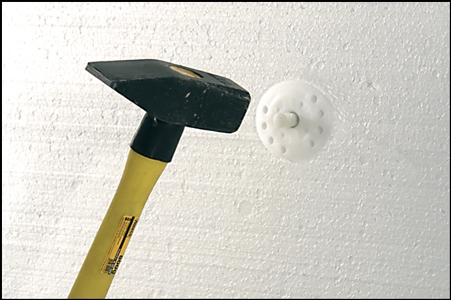

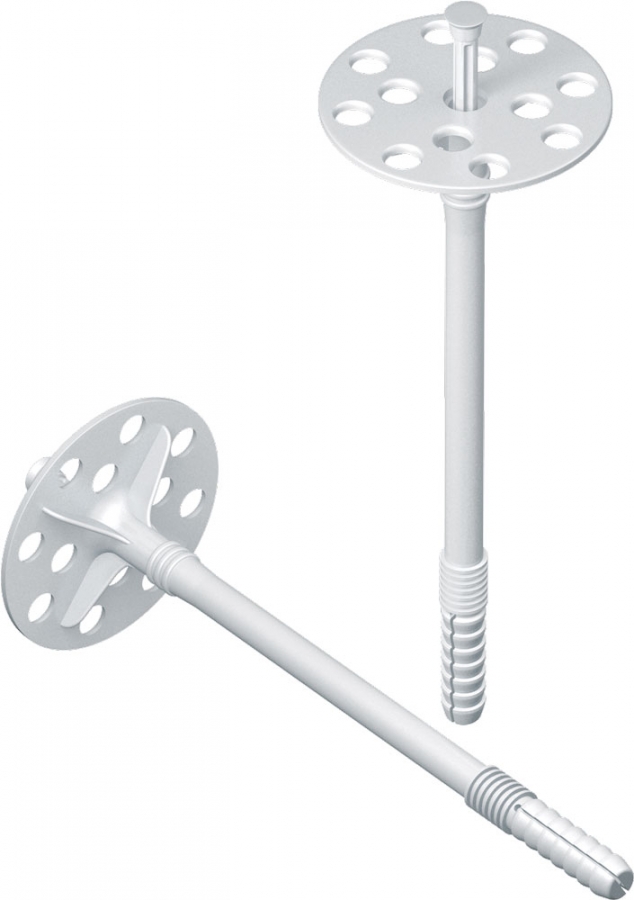

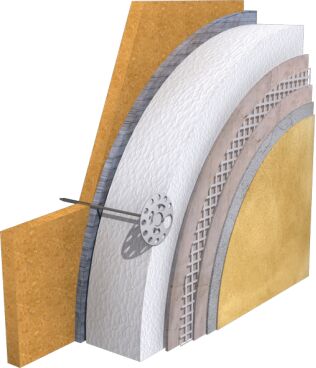

Hammer insulation fixing with a plastic pin designed for embedding of Jointless Facade Thermal Insulation Systems.
Product features:
- Installation in all substrates (categories A,B,C,D,E).
- The plastic nail reduces heat transmission (value 0.0W/K)
- Plastic nail reinforced with glass fibre allows fast and trouble-free installation with correct expansion of the plug.
- Expansion zone designed for low embedment depths, reducing the amount of drilling required.
- Can be used with additional KWL insulation holding plate, available in 90, 110 and 140mm flange sizes (recommended for soft insulation materials such as mineral wool).
- Optimal product parameters enable cost-saving solutions.
Material:
- Plug Sleeve: impact resistant copolymer of polypropylene PP.
- Nail Pin: polyamide PA 6.0 (Nylon) reinforced with fibre glass.

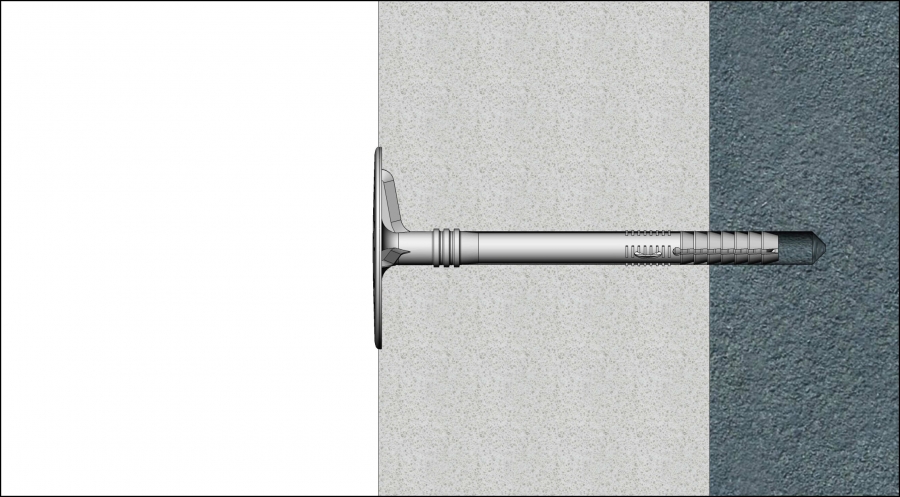

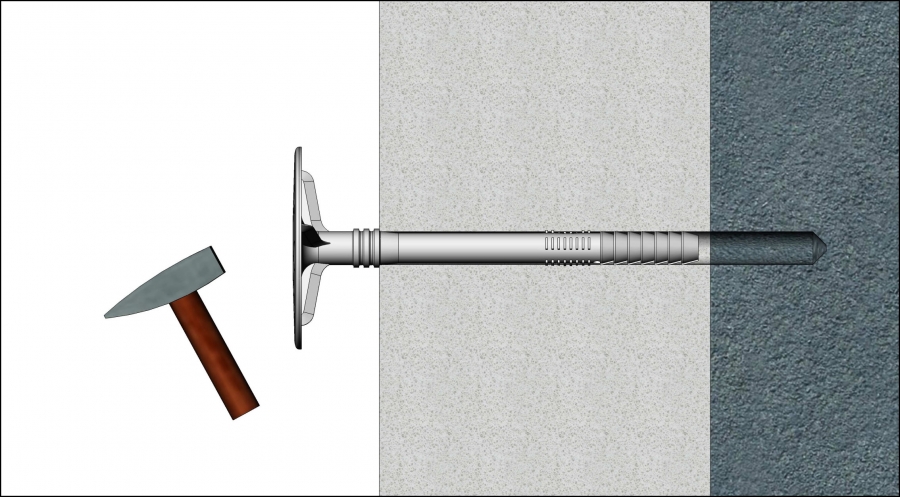

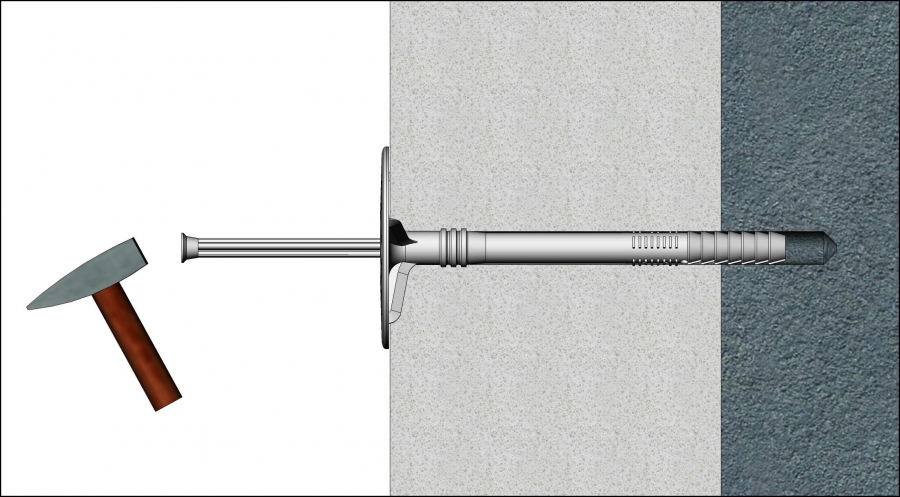

Installation recommendations:

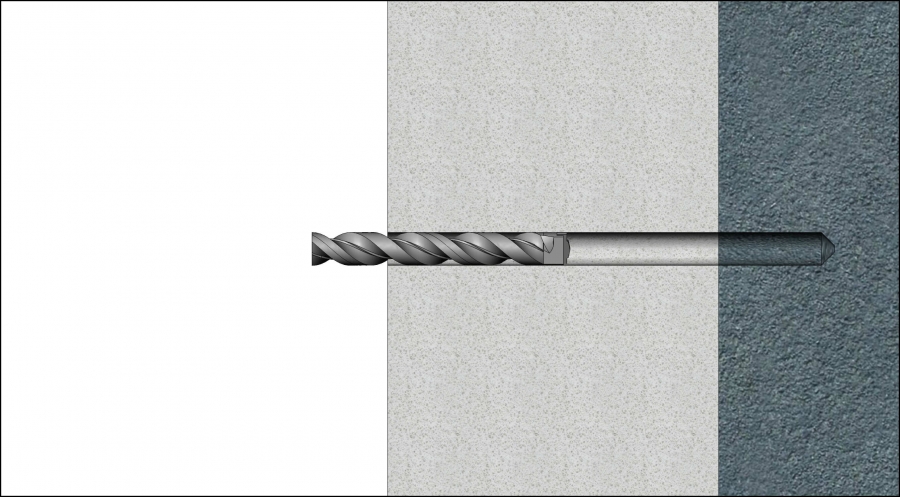

- drill diameter: 10 mm,
- minimum embedment depth: ETA 25mm
Dedicated substrates
Application

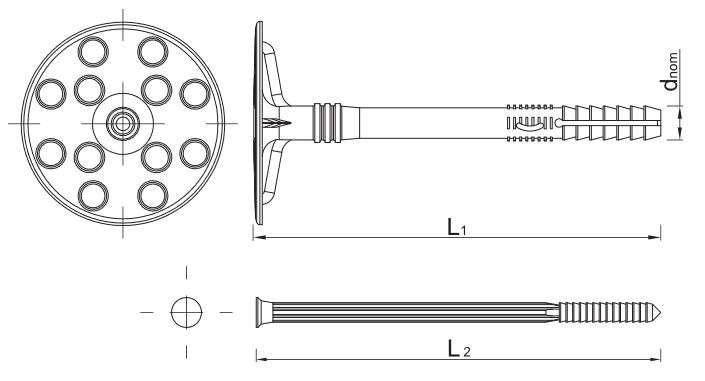

| Lenght [mm] | Max. insulation thickness [mm] | Package [pcs] |
| 70mm | 40mm | 250 Stk |
| 90mm | 60mm | 250 Stk |
| 120mm | 90mm | 250 Stk |
| 140mm | 110mm | 250 Stk |
| 160mm | 130mm | 250 Stk |
| 180mm | 150mm | 250 Stk |
| 200mm | 170mm | 250 Stk |
| 220mm | 190mm | 250 Stk |
Performance data for single anchor in tension without influence of edge distance and spacing
| Substrate | Concrete min. C16/20 | Concrete C12/15 | Solid brick | Sand-lime solid brick | Perforated ceramic brick | Perforated ceramic brick (i.e. Porotherm) | MEGA MAX | Sand-lime hollow brick | Lightweight concrete solid block | Lightweight concrete hollow block | Aerated concrete | |
| Embedment depth hef | [mm] | 25 | 25 | 25 | 25 | 40 | 40 | 40 | 25 | 60 | 40 | 60 |
| MEAN ULTIMATE LOAD NRu,m | ||||||||||||
| KI-10 | [kN] | 0.70 | 0.78 | 0.72 | 0.89 | 0.74 | 0.57 | 0.67 | 0.96 | 0.78 | 0.75 | 0.25 |
| CHARACTERISTIC LOAD NRk | ||||||||||||
| KI-10 | [kN] | 0.50 | 0.50 | 0.50 | 0.60 | 0.40 | 0.40 | 0.30 | 0.60 | 0.50 | 0.40 | 0.10 |
| DESIGN LOAD NRd | ||||||||||||
| KI-10 | [kN] | 0.25 | 0.25 | 0.25 | 0.30 | 0.20 | 0.20 | 0.15 | 0.30 | 0.25 | 0.20 | 0.05 |
| RECOMMENDED LOAD Nrec | ||||||||||||
| KI-10 | [kN] | 0.18 | 0.18 | 0.18 | 0.21 | 0.14 | 0.14 | 0.11 | 0.21 | 0.18 | 0.14 | 0.04 |
| Fixing type | KI-10 | |
| Plate resistance | [kN] | 0.86 |
| Plate stiffness | [kN/mm] | 0.50 |
| Point thermal transmittance χ | [W/K] | 0.00 |
Manufacturer details:
- Rawlplug S.A. | Kwidzyńska 6 | Wrocław 51-416 | Poland | bok@rawlplug.com
