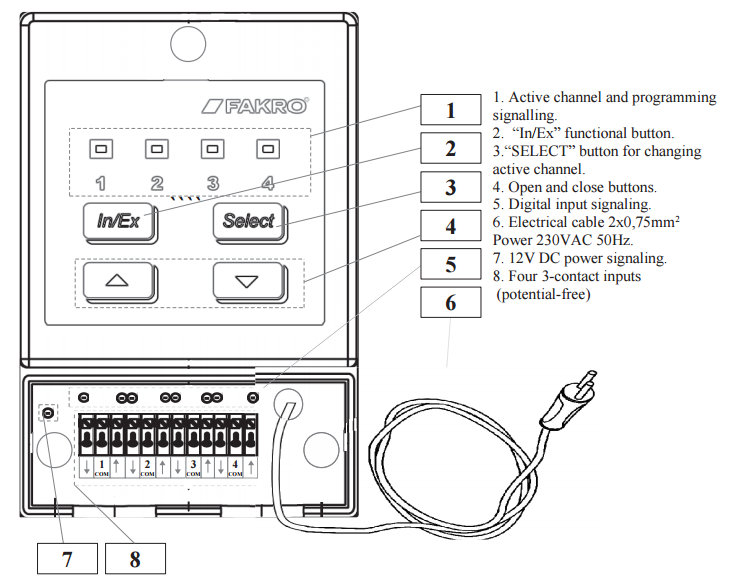

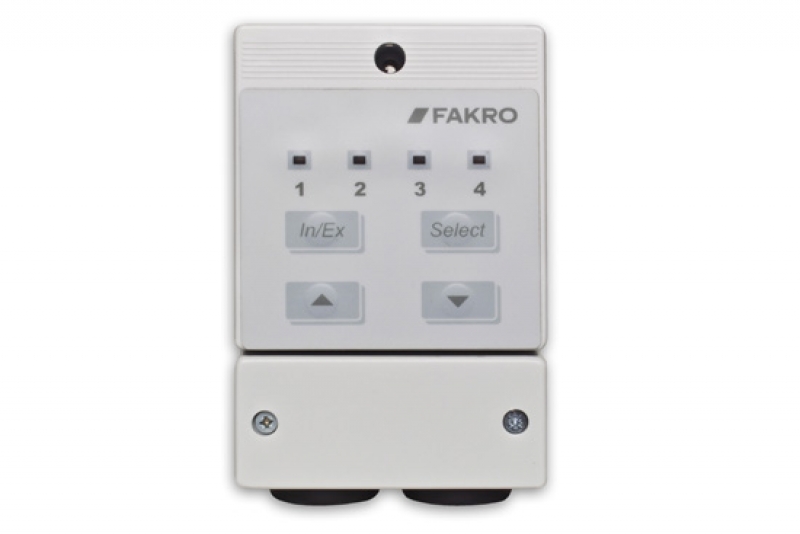

ZWMA adaptation module makes it possible to control FAKRO electric appliances equipped with Z-Wave module e.g. Electro Z-Wave window or roller shutter ARZ Z-Wave with the use of other control system. The module has four double (open - stop - close) digital inputs to which can be connected potential-free signals from various devices e.g external thermostat, time switch, the KNX/EIB system, etc. The module enable control of up to 231 devices simultaneously or in four groups maximum.
Technical parameters
| Technical parameters: | |
| power supply | 230VAC |
| working temperature | (+5° C) to (40° C) |
| working range | to 40m |
| working frequency | 868,42 MHz |
| Maximum cable length | 5 m |

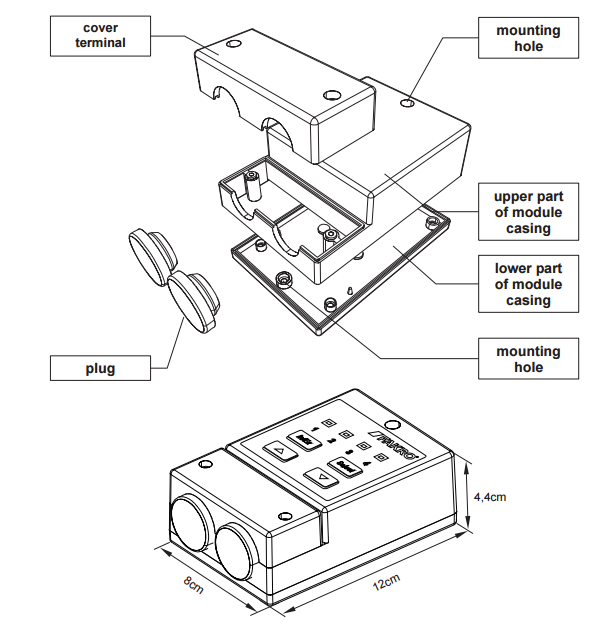

| dimensions | 120 x 80 x 45 mm |
Manufacturer details:
- Fakro Sp. z o.o. | Węgierska 144A | Nowy Sącz 33-300 | Poland | fakro@fakro.pl
