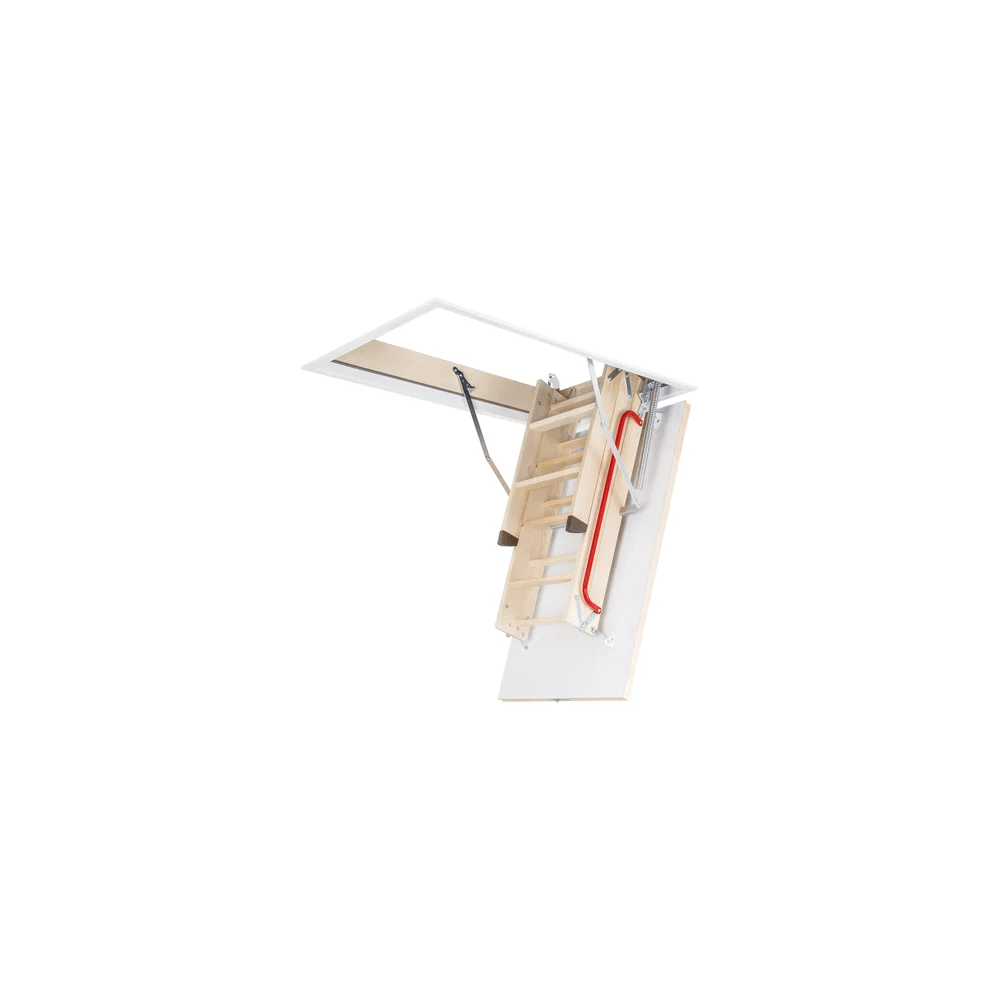

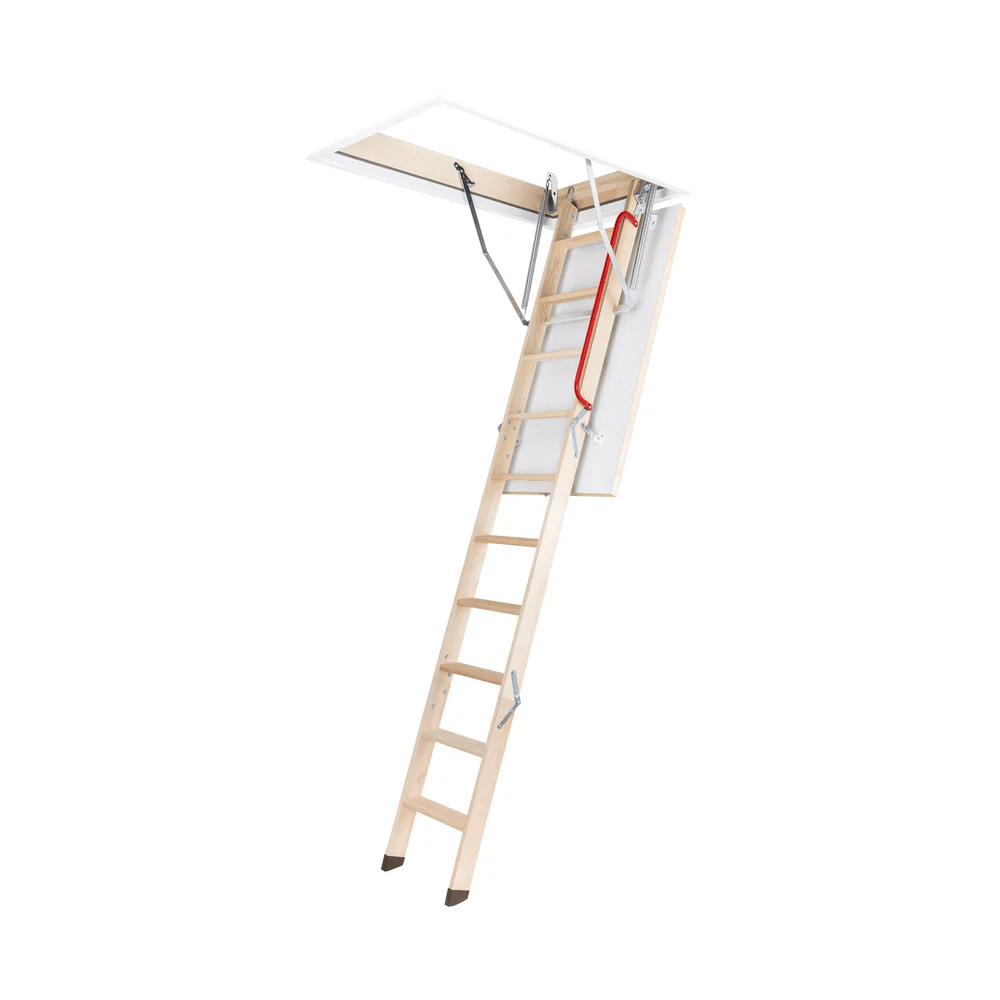

The FAKRO loft ladder LWZ is a 3-section folding wooden ladder with an insulated hatch. The wooden ladder box includes a steel frame, finishing linings slats and a quick installation system. This simplifies installation and reduces the time to fit the ladder in the ceiling.
Features:
- stile ends
- white hatch
- peripheral seal
- handrail
- non-slip treads set flush with ladder strings
- fully assembled and ready for quick installation in the ceiling
- possibility of installing additional accessories
- 3 yeahr warranty
Technical specification:
- Satisfy the requirements of EN 14975
- Maximum loading: 160 kg
- Loft ladder U-Value: U=1.1 W/m²K
- Insulation thickness: 3 cm
- Hatch thickness 3.6 cm

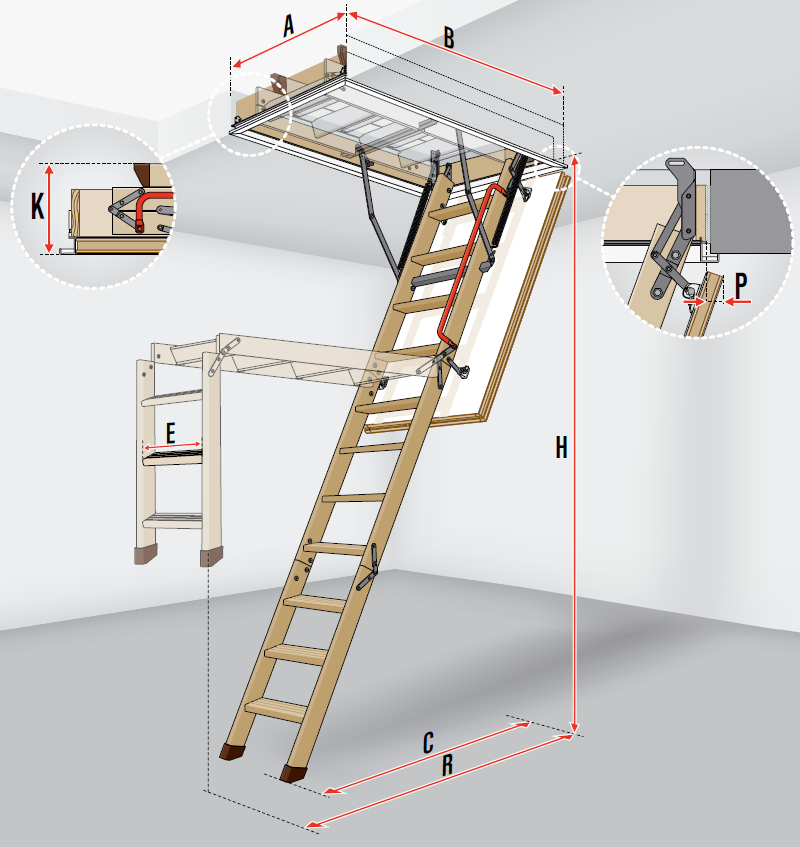

Technical data
| Ceiling opening dimension / room height[cm] | AxB hH | 60x120 h=280 | 70x120 h=280 | 70x130 h=280 | 70x140 h=280 | 60x130 h=305 | 70x130 h=305 | 70x140 h=305 |
| Box external dimension [cm] | WxL | 58.8x118.8 | 68.8x118.8 | 68.8x128.8 | 68.8x138.8 | 58.8x128.8 | 68.8x128.8 | 68.8x138.8 |
| Box interior dimension [cm] | MxN | 54x114 | 64x114 | 64x124 | 64x134 | 54x124 | 64x124 | 64x134 |
| Box height [cm] | 14 | |||||||
| Folded ladder height [cm] | K | 34 | ||||||
| Swing space [cm] | R | 162 | 179 | |||||
| Distance after ladder unfolding [cm] | C | 121 | 130 | |||||
| Tread length [cm] | E | 34 | ||||||
| Tread width [cm] | S | 8 | ||||||
| Tread thickness [cm] | Z | 2 | ||||||
| Distance between each tread [cm] | G | 25 | ||||||
Manufacturer details:
- Fakro Sp. z o.o. | Węgierska 144A | Nowy Sącz 33-300 | Poland | fakro@fakro.pl
U-value:
1.1 W/(m²K)
