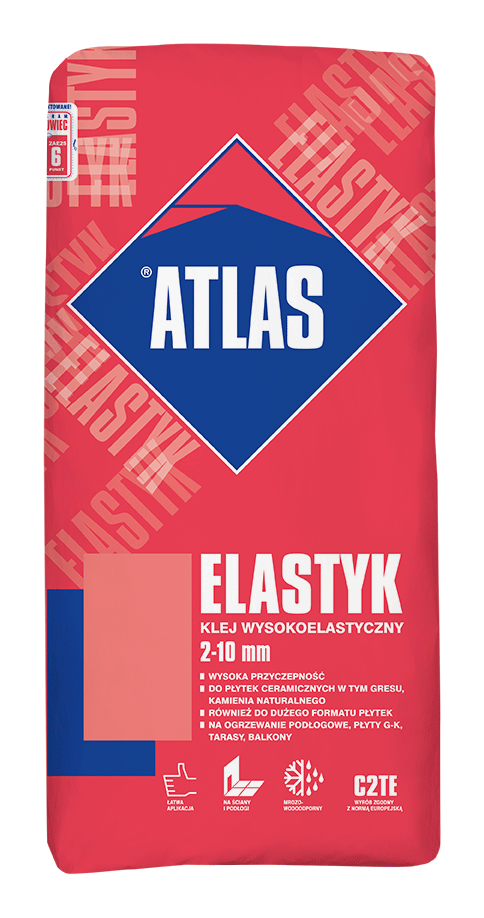

Atlas ELASTYK | elastic tile adhesive (C2TE, 2-10 mm)

13,71 / box inc. VAT, excl. shipping
(11,52 excl. VAT and shipping)
MAG-ATL-W-KP026-A0000-AT1A-2500

Ships within 10-12 business days after receipt of your payment

+
Add to wish list

ATLAS ELASTYK- flexible adhesive (C2TE type).  is manufactured as a dry mix of high quality cement binder, aggregates and special composition of modifiers. With improved bonding – minimum bonding to the substrate is 1.0 N/mm².

Recommended for heavy duty applications – involving difficult substrates or exposure to adverse weather conditions.
Ideal for coverings exposed to deformations – highly flexible, the adhesive compensates:

  • thermal stress - on balconies, in underfloor or wall heating systems (ATLAS PLUS, an S1 class adhesive is recommended for use on terraces),
  • mechanical stress – on plasterboards, gypsum or cement-bound particleboard, and damp proof membranes, such as WODER E or WODER DUO.
  • Enables tile fixing to difficult substrates - e.g. terrazzo.
  • good adhesion
  • high flexibility
  • for glazed tiles, terracotta, gres-porcelain tiles
  • for floor and wall heating
  • for difficult substrates – i.a. plasterboards
  • extended open time
  • bed thickness: 2 - 10 mm
  • high adhesion: ≥ 1 N/mm²
  • Types of surface: plastered and non-plastered walls of blocks, hollow brick, brick and cement and anhydrite screeds.
  • Types of tiles: small, medium and large size ceramic (glazing tiles, terracotta, mosaic), cement, stoneware, etc. tiles.

Consumption

Average consumption: ca. 1.5 kg of dry mix / 1 m2 / 1 mm adhesive layer – for complete filling the space under the tile. It depends on the smoothness of the surface and the bottom side of the tile.

Tile size Trowel
notch size
[mm]
Adhesive
bed thickness
[mm]
Contact surface
= 2/3
tile surface
[kg/m2]
Solid adhesive
bed
[kg/m2]
mosaic
up to
2 x 2 cm
4.0 2.0 2.0 3.0
small format
up to 10 x
10 cm
4.0 – 6.0 3.0 3.0 4.5
medium
format
up to 30 x
30 cm
6.0 – 8.0 4.0 4.0 6.0
large format
more than 30
x 30 cm
> 10.0 10.0 10.0 15.0

Packaging

Paper bags: 25 kg
Pallet: 1200 kg in 25 kg bags

Manufacturer details:
  • Atlas sp. z o.o. | Jana Kilińskiego 2 | Łódź 91-421 | Poland | atlas@atlas.com.pl
Type of adhesive:
  • Improved cementitious (C2)
  • Reduced slip (T)
  • Extendend open time (E)
Place of assembly:
  • Floors
  • Walls
  • Kitchen, bathroom, laundry, garage
  • Balconies, loggias
  • Cladding of building plinths
Types of buildings:
  • Housing
  • Public facilities
  • Commercial and service facilities
Type of tile:
  • Glazing tiles
  • Terracotta
  • Gres-porcelain
  • Clinker
  • Stoneware wall tiles
  • Ceramic mosaic
  • Concrete tiles, cement mortar tiles
Size of tile:
  • up to 0,1 m2
  • up to 0,25 m2
Layer thickness:
2 - 10mm





(EN) Technical Data (elastyk_td_en.pdf, 93 Kb) [Download]

(DE) Technische Daten (elastyk_td_de.pdf, 103 Kb) [Download]
