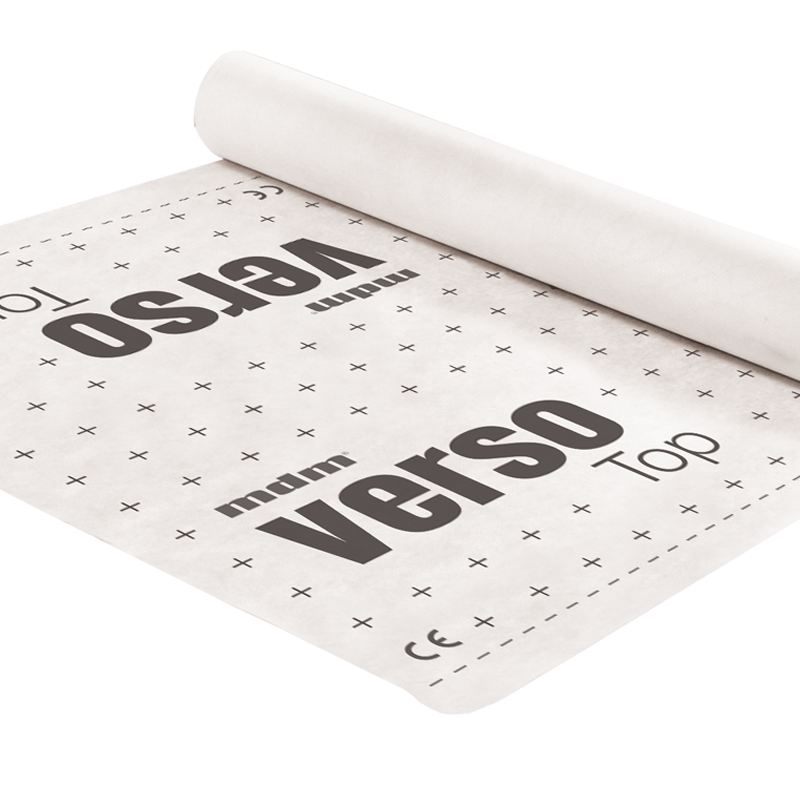

A high quality active vapour barrier with low Sd=4,5 m, efficiently limiting water vapour diffusion. Waterproof at 2kPa, durable and resistant. Three-layeredy with weight of about 85 g/m2 and thickness of 450 μm.
Material: Polypropylene nonwovens laminated with microporous polypropylene film.
lenght: 50 m; width: 1,5 m
Palett dimensions: 1540x1170x1300
m²/palett: 3900 m² / 52 rol.
| Product | Thickness [mm] | Weight [g/m2] | Temperature resistance | UV Resistance | Reaction to fire | Water vapour diffusion Sd | Tensile strength |
| Ventia Q | 0,90 | 230 | from -40°C to +80°C | 6 months | Class E-d2 | 0,04 m | MD - 380 N/50 mm (± 50) CD - 260 N/50 mm (± 35) |
| Ventia Platinium Plus | 1,00 | 225 | from -40°C to +80°C | 3 months | Class E-d2 | 0,04 m | MD - 500 N/50 mm (± 75) CD - 340 N/50 mm (± 40) |
| Ventia Titanium Plus | 0,85 | 185 | from -40°C to +80°C | 3 months | Class E-d2 | 0,02 m | MD - 430 N/50 mm (± 60) CD - 260 N/50 mm (± 35) |
| Ventia Titanium | 0,85 | 180 | from -40°C to +80°C | 3 months | Class E-d2 | 0,02 m | MD - 420 N/50 mm (± 70) CD - 250 N/50 mm (± 35) |
| Ventia Cobalt Plus | 0,80 | 170 | from -40°C to +80°C | 3 months | Class E-d2 | 0,04 m | MD - 370 N/50 mm (± 50) CD - 230 N/50 mm (± 25) |
| Ventia Gold | 0,70 | 150 | from -40°C to +80°C | 3 months | Class E | 0,02 m | MD - 350 N/50 mm (± 50) CD - 210 N/50 mm (-10+40) |
| Ventia Bronze | 0,60 | 130 | from -40°C to +80°C | 3 months | Class E-d2 | 0,02 m | MD - 280 N/50 mm (± 40) CD - 190 N/50 mm (± 35) |
| Ventia Iron | 0,55 | 120 | from -40°C to +80°C | 3 months | Class E-d2 | 0,02 m | MD - 245 N/50 mm (± 45) CD - 140 N/50 mm (± 25) |
| Ventia Metal | 8 + 0,70 | 400 | from -30°C to +80°C | 3 months | Class F | 0,02 m | MD - 400 N/50 mm (± 60) CD - 210 N/50 mm (± 30) |
| VERSO TOP | 0,45 | 90 | - | - | Class E-d2 | 4,5m | MD - 100 N/50 mm (± 30) CD - 60 N/50 mm (± 50) |
| Ventia Reflex | 0,50 | 77 | - | - | Class F | 8 m | MD - 130 N/50 mm (± 25) CD - 90 N/50 mm (± 20) |
Manufacturer details:
- MDM NT Sp. z o.o. | Bestwińska 143 | Bielsko-Biała | Poland | biuro@mdmnt.com
Dimensions
Width:
1500mm
Length:
50000mm
Roof underlays
Basis weight:
85 g/m²
Thickness:
450 μm
Sd:
4.5 m
